Nissan Altima (L34) 2019-2024 Owners Manual: Intelligent Around View Monitor system operation

With the ignition switch in the ON position, move the shift lever to the R (Reverse) position or press the CAMERA button to operate the Intelligent Around View Monitor.

The screen displayed on the Intelligent Around View Monitor will automatically return to the previous screen 3 minutes after the CAMERA button has been pressed with the shift lever in a position other than the R (Reverse) position.

Available views

WARNING

• The distance guide lines and the vehicle width lines should be used as a reference only when the vehicle is on a paved, level surface. The apparent distance viewed on the monitor may be different than the actual distance between the vehicle and displayed objects.
• Use the displayed lines and the bird’s-eye view as a reference. The lines and the bird’s-eye view are greatly affected by the number of occupants, cargo, fuel level, vehicle position, road condition and road grade.
• If the tires are replaced with different sized tires, the predicted course lines and the bird's-eye view may be displayed incorrectly.
• When driving the vehicle up a hill, objects viewed in the monitor are further than they appear. When driving the vehicle down a hill, objects viewed in the monitor are closer than they appear.
• Objects in the rear view will appear visually opposite compared to when viewed in the monitor and outside mirrors.
• Use the mirrors or actually look to properly judge distances to other objects.
• On a snow-covered or slippery road, there may be a difference between the predicted course lines and the actual course line.
• The vehicle width and predicted course lines are wider than the actual width and course.
• The displayed lines will appear slightly off to the right, because the rearview camera is not installed in the rear center of the vehicle.

Front view

Front and rear view

Guiding lines that indicate the approximate vehicle width and distance to objects with reference to the vehicle body line A are displayed on the monitor.

Distance guide lines:

Indicate distances from the vehicle body:

• Red line 1 : approximately 1.5 ft (0.5 m)
• Yellow line 2 : approximately 3 ft (1 m)
• Green line 3 : approximately 7 ft (2 m)
• Green line 4 : approximately 10 ft (3 m) (if so equipped)

Rear view

Vehicle width guide lines 5 :

Indicate the approximate vehicle width when backing up.

Predicted course lines 6 :

Indicate the predicted course when operating the vehicle. The predicted course lines will be displayed on the monitor when the steering wheel is turned. The predicted course lines will move depending on how much the steering wheel is turned and will not be displayed while the steering wheel is in the straight-ahead position.

The front view will not be displayed when the vehicle speed is above 6mph(10 km/h).

NOTE:

When the monitor displays the front view and the steering wheel turns about 90 degrees or less from the straight-ahead position, both the right and left predicted course lines 6 are displayed.

When the steering wheel turns about 90 degrees or more, a line is displayed only on the opposite side of the turn.

Bird’s-eye view

The bird's-eye view shows the overhead view of the vehicle, which helps confirm the vehicle position and the predicted course to a parking space.

The vehicle icon 1 shows the position of the vehicle. Note that the apparent distance between objects viewed in the bird's-eye view may differ somewhat from the actual distance to the vehicle.

The areas that the cameras cannot cover 2 are indicated in black.

After the ignition switched is placed in the ON position, the non-viewable area 2 is highlighted in yellow for 3 seconds after the birds-eye view is displayed.

In addition, the non-viewable corners are displayed in red and will blink for the first 3 seconds 3 to remind the driver to be cautious.

WARNING

• Objects in the bird's-eye view will appear further than the actual distance.
• Tall objects, such as a curb or vehicle, may be misaligned or not displayed at the seam of the views.
• Objects that are above the camera cannot be displayed.
• The view of the bird's-eye view may be misaligned when the camera position alters.
• A line on the ground may be misaligned and is not seen as being straight at the seam of the views. The misalignment will increase as the line proceeds away from the vehicle.

Front-side view

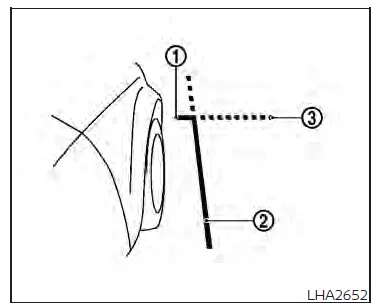

Guiding lines

Guiding lines that indicate the approximate width and the front end of the vehicle are displayed on the monitor.

The front-of-vehicle line 1 shows the front part of the vehicle.

The side-of-vehicle line 2 shows the approximate vehicle width including the outside mirrors.

The extensions 3 of both the front 1 and side 2 lines are shown with a green dotted line.
