Nissan Altima (L32) 2007-2012 Service Manual: ECU diagnosis
BCM (BODY CONTROL MODULE)
Reference Value

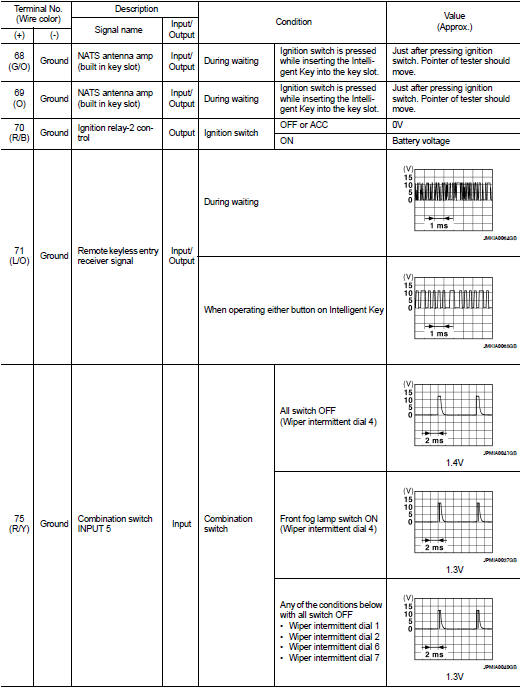

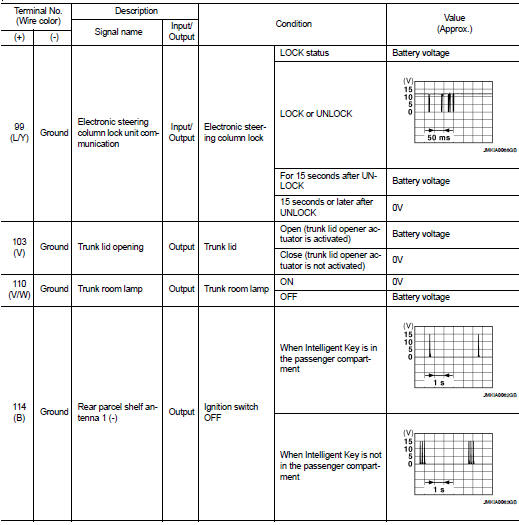

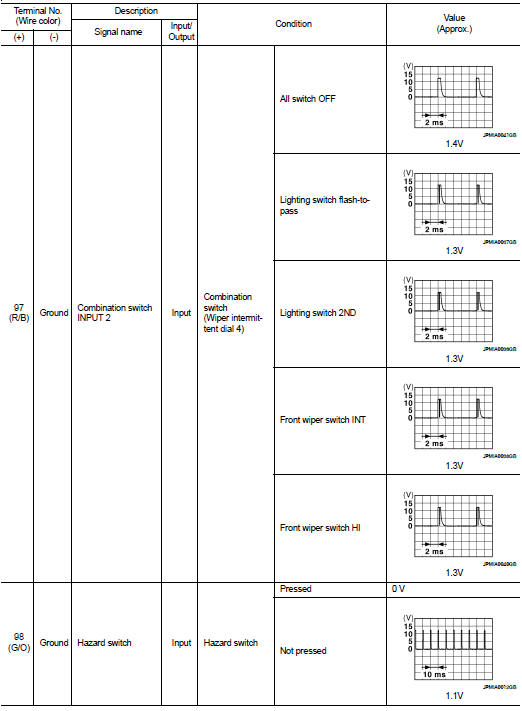

VALUES ON THE DIAGNOSIS TOOL
Terminal Layout
Physical Values
1: Sedan only
2: With LH front window anti-pinch
3: With LH and RH front window anti-pinch
4: With Intelligent Key
5: Without Intelligent Key
Wiring Diagram - Coupe

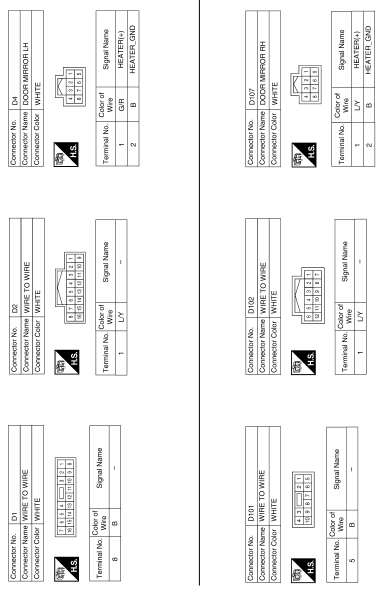

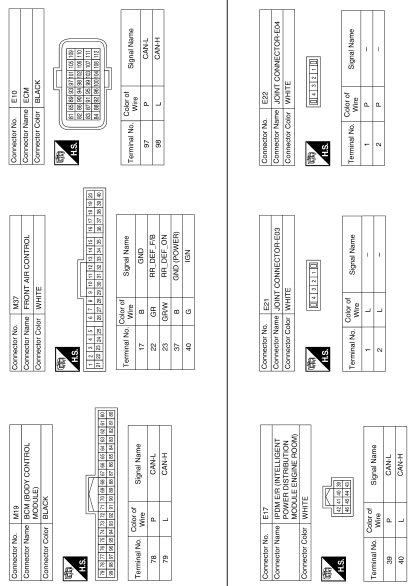

Wiring Diagram - Sedan
Description
Heats the heating wire with the power supply from the rear window defogger
relay to prevent the door mirror
from fogging up.
Component Function Check
1.CHECK DOOR MIRROR DEFOGGER RH
...
